Publishing a Garden with Modal

Warning

Use of this feature requires that your Globus account is authorized by the Garden Team. Please email us or fill out this form if you are interested in creating gardens.

1. Introduction

This guide will walk you through the process of publishing a Garden from a Modal App.

Prerequisites

Create a GitHub account

Modal uses GitHub for authentication.

If you already have a GitHub account, you're good to move to the next step. Otherwise, create a free GitHub account before continuing.

Create a free Modal account by linking your GitHub: signup.

Note

You'll get $30/month of free compute credit for your personal Modal account. It's totally safe to spend those credits developing and debugging your modal functions before you publish them with garden -- modal functions published through garden won't charge your personal account.

Create a python virtual env and install the current modal CLI and SDK along
with the Garden CLI and SDK:

```bash
python3 -m venv .venv
source .venv/bin/activate
pip install modal
pip install garden-ai
```

You need to log in into modal using your GitHub account and create a token:

modal setup

Tip

Skip the details and see the complete modal file.

Modal files are regular python scripts that define a modal app and decorate one
or more functions. Create a new python file in your project:

$ touch my_app.py

You can also use modal's interactive playground to develop your modal function.

Add Imports

# my_app.py

# Import the Modal SDK
import modal

Create a modal.App object where your custom functions will be registered.
Modal apps need to be assigned to a variable named app and at the top-level (global) scope.

app = modal.App("my-cool-app")

Customize the container your code will run in (optional)

To make python packages available to your Modal functions, declare a modal.Image with your requirements.

Check out this playground to see how it works.

image = modal.Image.debian_slim().pip_install("numpy", "pandas")

See Modal's Image docs for more information.

Modal functions are regular python functions that have been decorated with @app.function().
The @app.function() decorator registers the function with the modal.App created above.
Like Modal Apps, Modal functions need to be defined in the top-level (global) scope.

# Define a function and register it with the app
# Functions can be named anything you like
@app.function()
def my_awesome_function(data):
  result = sum(data)
  return result


# You can register multiple functions to the same app
@app.function(image=image)
def my_other_cool_function(data):
  # import from custom image inside the modal function
  import numpy as np
  import pandas as pd

  data = np.array(data)
  result = max(sum(data), 42)
  return result

This is all we need to do to define a Modal App that can be published with Garden! See the complete modal file below:

# my_app.py

# Import the Modal SDK
import modal

# Define your App -- this is the top-level entity that holds references to functions
# It must be assigned to a variable named 'app' for Garden to extact it properly
app = modal.App("my-cool-app")

# Define a custom container for your functions
image = modal.Image.debian_slim().pip_install("numpy", "pandas")

# Define a function and register it with the app
# Functions can be named anything you like
@app.function()
def my_awesome_function(data):
  result = sum(data)
  return result

# You can register multiple functions to the same app
@app.function(image=image)
def my_other_cool_function(data):
  # import from custom image inside the modal function
  import numpy as np
  import pandas as pd

  data = np.array(data)
  result = max(sum(data), 42)
  return result

3. Testing and Debugging

Garden provides a citable, findable, wrapper around the modal function. Before we
register the function with Garden it can be useful to test it with the raw modal
runtime tools. This makes for a faster feedback loop when developing and debugging.

To enable this, we have to add a local_entrypoint to our python script. This is only
used by the modal CLI and will be ignored by Garden.

Add this to your python script:

@app.local_entrypoint()
def main():
    # run the function on the modal servers
    print(my_awesome_function.remote([1, 2, 3, 4, 5]))

Ask modal to run this with:

modal run my_app.py

4. Specify Dependencies and Cache Model

Modal allows you to define an image in which the function will run. See the modal
docs on images for full information. Here's
an example of how to define an image that includes some pip dependencies, installs
wget into the debian image, and downloads a model from figshare:

image = modal.Image.debian_slim(python_version="3.12").apt_install("wget") \
.pip_install(
    "pandas==2.2.3",
    "torch==2.2.2",
    "torchvision==0.17.2",
    "requests==2.32.3",
) \
    .run_commands("wget -O model.pth https://figshare.com/ndownloader/files/51767333", "pwd", "ls -lht")

In this example, the model will be available to the function in the container at /model.pth.

Caching Hugging Face Models

If you are using one of HuggingFace's published transformers, you can take advantage
of the library's caching strategy. You need to call the python functions to load the models
during the run_commands phase of the image build. Here is an example of how to cache
the distilbert-base-uncased model:

image = modal.Image.debian_slim(python_version="3.12") \
.pip_install(
    "transformers",
    "sentencepiece",
    "torch",
    "datasets") \
    .run_commands('python -c "from transformers import T5Tokenizer, T5ForConditionalGeneration; model_name = \'t5-small\'; T5Tokenizer.from_pretrained(model_name); T5ForConditionalGeneration.from_pretrained(model_name) "')

For models that have been published to the HuggingFace model hub, you can use the
a git clone to download the model and cache it in the image. Here is an example

image = modal.Image.debian_slim(python_version="3.12").apt_install("wget") \
.apt_install("git") \
.pip_install(
    "torch",
    "datasets") \
    .run_commands('git clone https://huggingface.co/Arigadam/img2float', 'pwd', 'ls -lht')

5. Upload your App to Garden

Now that you have a python file defining your Modal App, you can upload it to Garden.

Create a new Garden

Create a Garden and upload your Modal App on the Create Garden page.

Or Click 'Create a Garden' from the Garden Home Page

Create a Garden

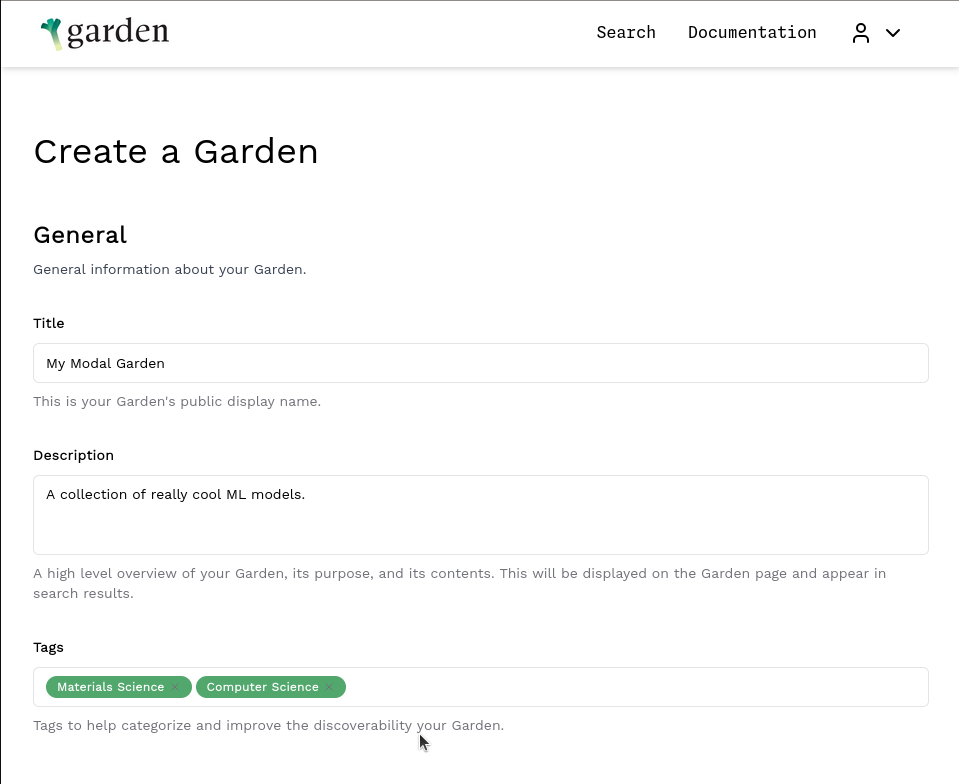

Fill in Garden Details

Fill in the general details about your garden including a title, description of the Garden, and any tags you want to add.

Fill in Garden Details

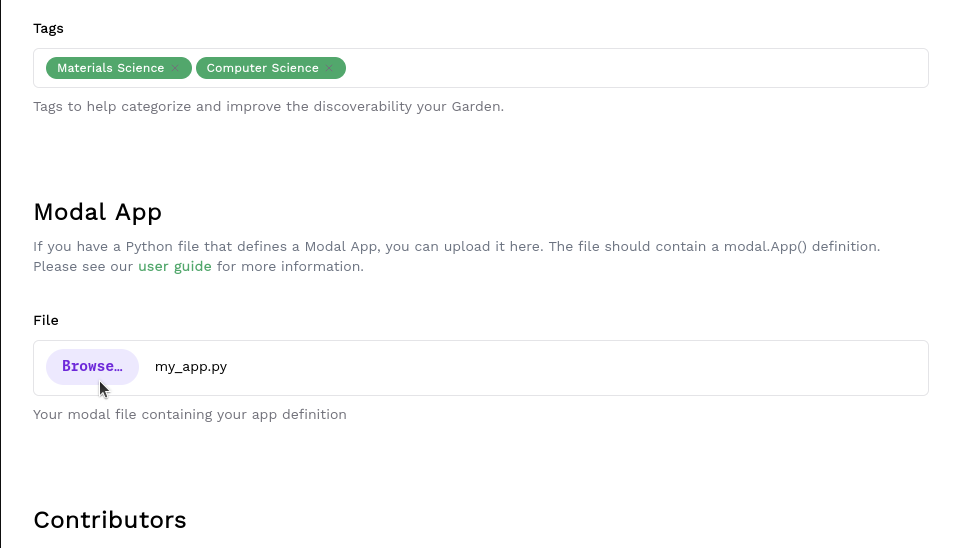

Upload the Modal App by clicking 'Browse' and selecting the python file defining your Modal App.

Upload Modal App

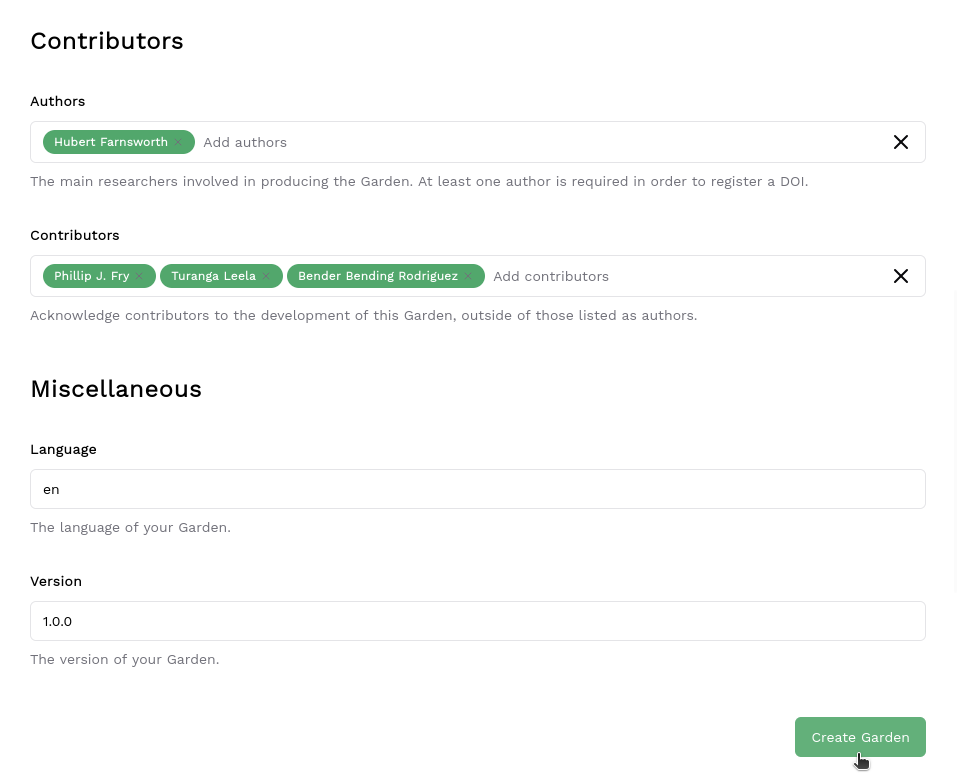

Add Contributors

Fill in information about the authors and any contributors to the Garden.

Add Contributors

Submit the form

When the information is correct click 'Create Garden'!

It may take a few minutes for the deployment process to finish.

Check the 'My Gardens' tab on your Profile page for the new Garden. Note the DOI for the next step.

6. Invoke your published functions using Garden

After uploading your Modal App to Garden, you should have a new DOI referencing the Garden you created.

You can run your Modal functions like any other Entrypoint published on Garden:

from garden_ai import GardenClient

# the doi of the Garden created in step 3
garden_doi = "10.1234/567-8910f"


data = [1, 2, 3, 4, 5]

client = GardenClient()
garden = client.get_garden(garden_doi)

# Function is executed remotely on Modal!
result = garden.my_awesome_function(data)
